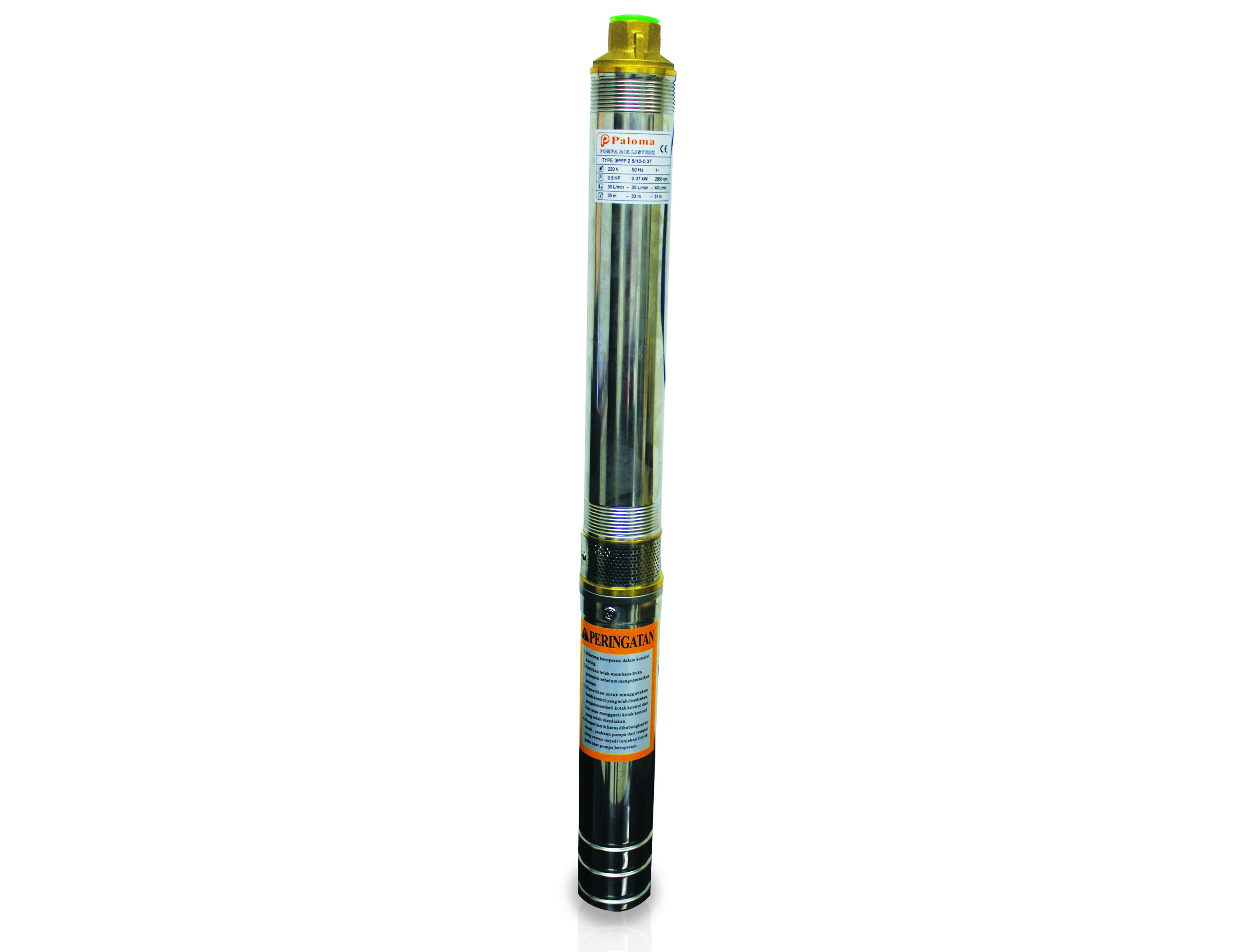

Nama Produk

3PPP2.5/7

Spesifikasi

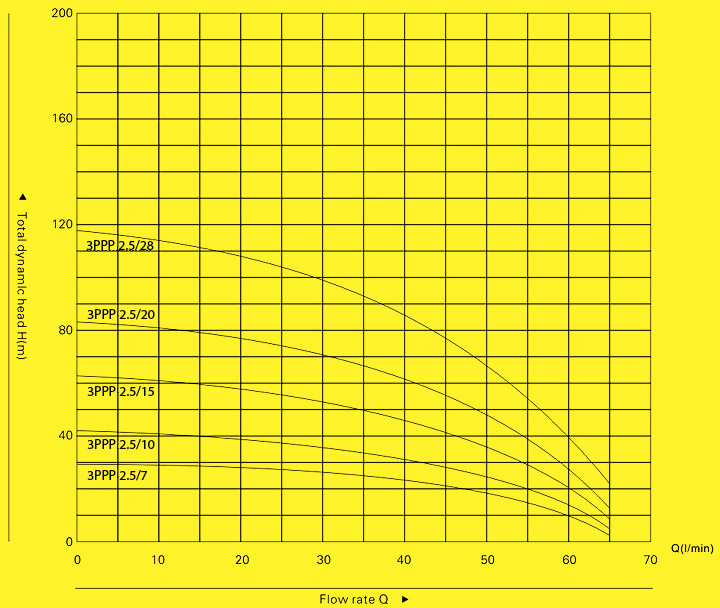

MODEL		P2		DELIVERY          n=2850 1/min
1’’ (Single Phase) 220V/240V	3’’ (Three Phase) 380V/415V	KW	HP	Q	m3/h	0	0.3	0.6	0.9	1.2	1.5	2	2	2	3	3
					1/Min	0	5	10	15	20	25	30	35	40	50	55
3PPP2.5/7	3STP2.5/7	0.3	0.3	H(m)		29	28	27	26	25	24	23	22	21	16	13
3PPP2.5/10	3STP2.5/10	0.4	0.5			42	41	40	39	38	37	35	33	31	24	19
3PPP2.5/15	3STP2.5/15	0.6	0.8			63	62	61	59	58	56	53	50	47	35	29
3PPP2.5/20	3STP2.5/20	0.8	1			83	82	81	79	77	74	70	66	62	47	38
3PPP2.5-/28	3STP2.5/28	1.1	1.5			117	115	114	111	108	104	98	92	87	66	53
