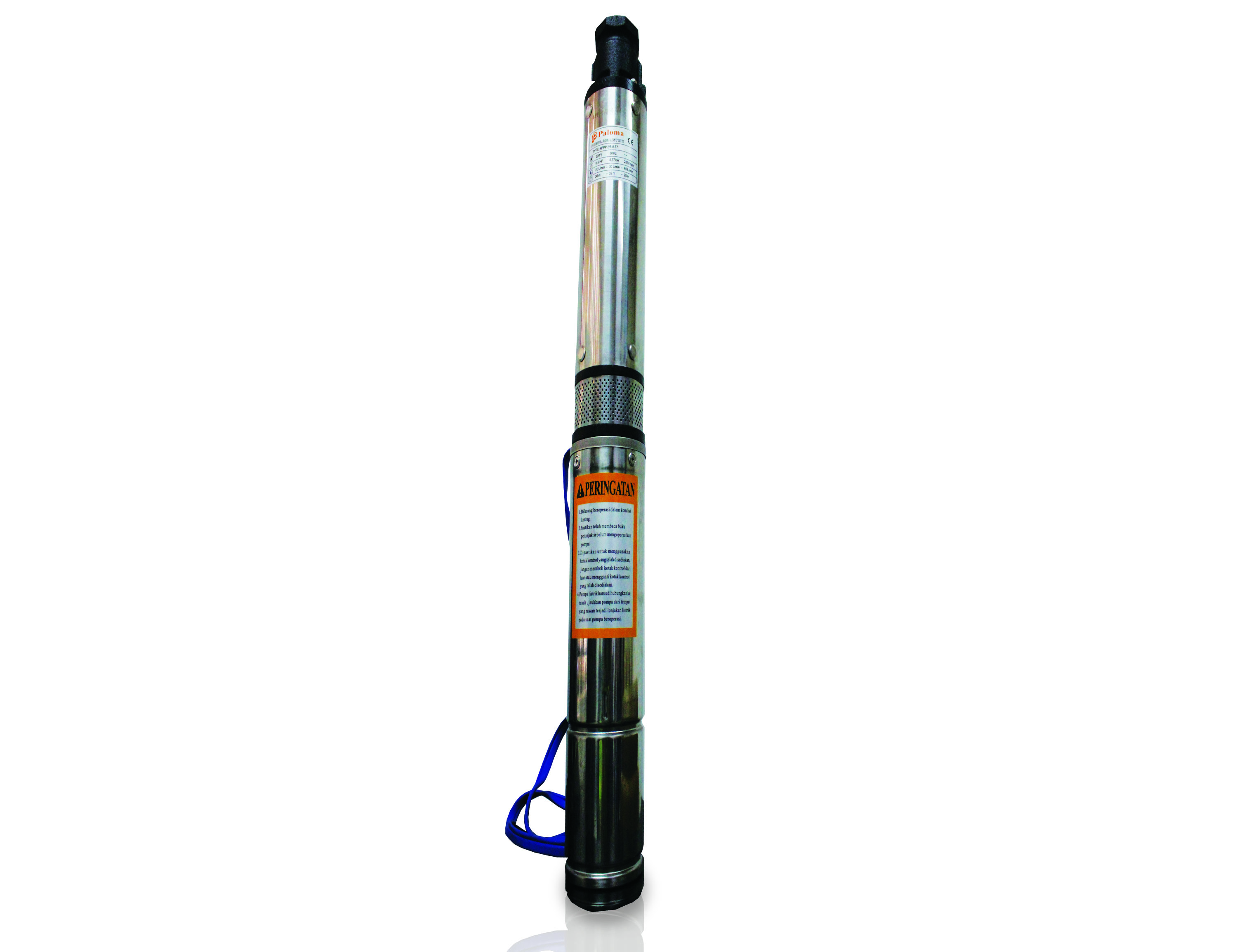

Nama Produk

4PPP2/9

Spesifikasi

MODEL		P2		DELIVERY          n=2850 1/min
1’’ (Single Phase) 220V/240V	3’’ (Three Phase) 380V/415V	KW	HP	Q	m3/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3
					1/Min	0	5	10	15	20	25	30	35	40	45	50
4PPP2/6	4STP2/6	0.4	0.5	H(m)		40	39	38	37	36	34	32	29	25	21	17
4PPP2/9	4STP2/9	0.6	0.8			60	59	58	57	54	52	48	43	38	32	26
4PPP2/13	4STP2/13	0.8	1			86	85	84	82	79	75	69	62	55	46	37
4PPP2/18	4STP2/18	1.1	1.5			119	118	117	114	109	103	95	86	76	64	51
4PPP2/24	4STP2/24	1.5	2			159	157	156	152	145	138	127	114	101	85	68
4PPP2/38	4STP2/38	2.2	3			252	249	247	240	230	218	201	181	160	135	108
